PES 2021 Private Server / Online Emulator Progress + TrueNAS Docker Setup​

Hi everyone,

I want to share the current progress of our PES 2021 private server / online emulator work, explain what has already been achieved, what is still not working, and how other people can run the current test server using TrueNAS + Docker.

First of all, credit where it is due:

Original project by Nikow5:
Nikow5/Pes2021PrivateServer

Our work is based on that project. Nikow5’s project gave the starting foundation for PES 2021 private server research and local/LAN-style testing.

What we are doing now is extending and heavily improving that base into a Dockerized, dashboard-driven, publicly deployable emulator environment for further reverse engineering and eventually online lobby / friendly match support.

This is not a finished public server yet. It is a working reverse engineering and protocol research build.



What this project is trying to achieve

The long-term goal is to restore usable online functionality for PES 2021.

Priority order:

  1. Friendly Match Lobby
  2. Normal 1 vs 1
  3. Room creation
  4. Room joining
  5. P2P negotiation
  6. Gameplay packet handling
  7. Team Play Lobby
  8. MyClub

MyClub is not the priority right now because it has many additional services and is much more complex. Friendly Lobby / normal 1 vs 1 is a better first target.



What was added on top of the original Nikow5 project

The original project was the base.

On top of it, we added or significantly improved:

✅ Docker deployment
✅ Public Docker image
✅ TrueNAS SCALE deployment
✅ Docker Compose / YAML setup
✅ Runtime environment configuration

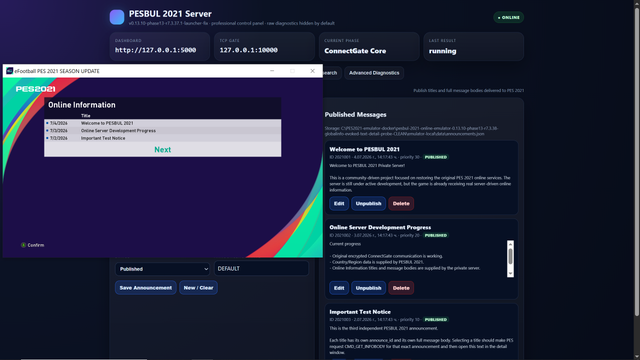

✅ Web dashboard
✅ Live packet monitor
✅ Packet inspector
✅ HEX viewer
✅ ASCII viewer
✅ Timeline view
✅ Session tracking
✅ Export Debug ZIP
✅ Individual packet .hex export
✅ Auth analysis reports
✅ RX/TX packet comparison
✅ Byte-by-byte Auth diff
✅ Network discovery after Auth
✅ UDP/STUN/raw UDP logger
✅ HTTP/Gateway logger
✅ Runtime Auth mode switching
✅ Auth Lab profiles
✅ Clear Logs button
✅ Version display inside dashboard/API/logs
✅ Debug export suitable for sharing captures with other developers

The Docker image currently used is:

Code:
noobsaibot301/pes2021-emulator:latest

Versioning is intentionally kept inside the dashboard, API, logs, and export files.

We do not rely on versioned Docker tags anymore.



Current technical status

The emulator now reaches far beyond simply listening on TCP.

The current working flow is:

Code:
New TCP connection
        ↓
RX 0x2EE4
EULA / Server Area Request
        ↓
TX 0x2EF4
EULA / Server Area Response
        ↓
RX 0x2E04
Authentication Ticket
        ↓
Authenticated User: TestUser
        ↓
TX 0x2E04
Authentication Response
        ↓
Client closes connection

This means:

✅ DNS redirect works
✅ The PES 2021 client reaches our server
✅ TCP ConnectGate works
✅ XOR / NclMio parser works
✅ Packet parser works
✅ We correctly detect PES commands
✅ EULA request is intercepted
✅ EULA response is accepted by the client
✅ Auth ticket is intercepted
✅ Auth response is accepted far enough for the client to continue through Auth

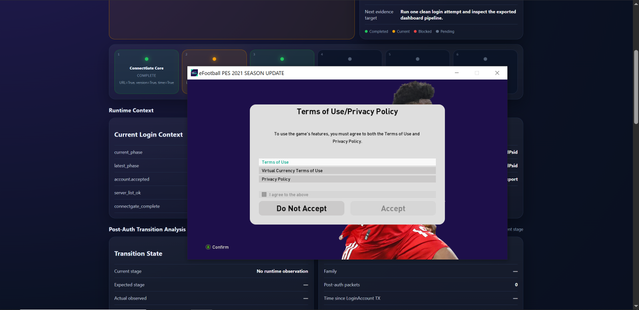

✅ The game reaches the Online menu / login flow
❌ The client does not yet send the first Lobby packet
❌ The client closes immediately after Auth

This is a very important milestone. The project is no longer stuck at connection, DNS, TCP, XOR, or EULA. The blocker is now specifically the post-authentication transition before the Lobby protocol begins.



Confirmed opcodes so far

Code:
0x2EE4 = EULA / Server Area Request
0x2EF4 = EULA / Server Area Response
0x2E04 = Authentication Ticket / Authentication Response

The current known sequence is stable and repeatable.



What we tested

A lot of Auth Response variants were tested.

Auth Lab profiles include:

Code:
baseline
mirror8
mirror16
mirror32
mirror64
mirror96
full120
mirror_header
user_profile
pure_mirror96
pure_full120
echo_payload120

The reason for testing these profiles was to determine whether the immediate disconnect after Auth was caused by:

  • wrong packet length
  • wrong payload size
  • missing mirrored token
  • wrong session bytes
  • wrong IP field
  • wrong flags
  • zeroed tail
  • overwritten fields
  • bad header/payload layout

Current result:

All tested profiles reach the same general state:

Code:
EULA accepted
Auth accepted
POST_AUTH_WAIT
Client closes
No Lobby opcode

So the problem is probably not just packet length or simple mirroring.



What is currently NOT working

The emulator does not yet reach:

❌ Friendly Lobby
❌ Room list
❌ Room creation
❌ Room join
❌ P2P negotiation
❌ Gameplay packets
❌ Team Play

The client closes the TCP session around 50 ms after the Auth Response.

No additional endpoint is seen after Auth:

Code:
No additional TCP connection
No HTTP request
No UDP packet
No TLS request
No STUN packet
No Lobby opcode

This suggests the remaining blocker is likely inside Auth/session validation, or possibly Steam-related validation.



Current theory

The remaining issue is probably one of:

  • missing Auth Response field
  • unknown session token
  • encrypted/signature field
  • checksum/HMAC-like validation
  • Steam ticket/session validation
  • some internal client-side validation before Lobby starts

The Steam version may require a valid Steam/Konami ticket flow before it sends the first Lobby opcode.

One planned experiment is to test Football Life 26, because it does not require Steam. If Football Life progresses further, that would strongly suggest the blocker is related to Steam authentication/session validation.



TrueNAS / Docker Setup Tutorial

This is the current simple setup method.

You only need:

  • TrueNAS SCALE
  • Docker / Custom App support
  • The Docker image:
    Code:
      noobsaibot301/pes2021-emulator:latest
  • Your server LAN IP
  • PES client DNS/hosts redirect pointing PES domains to your server

Do not publish your real LAN IP or public IP when sharing logs.

Use placeholders like:

Code:
<YOUR_TRUENAS_IP>
<YOUR_CLIENT_IP>
<YOUR_SERVER_IP>



Docker Compose / TrueNAS YAML

Use this as the base YAML:

Code:
services:
  pes2021:
    container_name: pes2021
    image: noobsaibot301/pes2021-emulator:latest
    pull_policy: always
    restart: unless-stopped

    environment:
      PES_DB_PATH: /tmp/pes2021.db
      PES_EVENT_LOG: /tmp/events.log
      PES_GATEWAY_TCP_PORTS: '80'
      PES_HTTP_PORT: '5000'
      PES_REGION_CODE: FRA
      PES_SERVER_PUBLIC_IP: <YOUR_TRUENAS_IP>
      PES_TCP_PORT: '10000'
      PES_UDP_PORTS: '5730,5739,5740'

    ports:
      - "5000:5000/tcp"
      - "8088:80/tcp"
      - "10000:10000/tcp"
      - "5730:5730/udp"
      - "5739:5739/udp"
      - "5740:5740/udp"

Replace:

Code:
<YOUR_TRUENAS_IP>

with the LAN IP of your TrueNAS server.

Do not post your real IP publicly.



What the ports are used for

Code:
Host Port | Container Port | Protocol | Purpose
5000      | 5000           | TCP      | Dashboard / API
8088      | 80             | TCP      | HTTP/Gateway logger
10000     | 10000          | TCP      | PES TCP ConnectGate
5730      | 5730           | UDP      | STUN/raw UDP logger
5739      | 5739           | UDP      | PES UDP/P2P candidate logger
5740      | 5740           | UDP      | PES UDP/P2P candidate logger

Dashboard URL:

Code:
http://<YOUR_TRUENAS_IP>:5000



TrueNAS setup steps

  1. Open TrueNAS SCALE.
  2. Create a Custom App / Docker Compose app.
  3. Paste the YAML above.
  4. Replace <YOUR_TRUENAS_IP> with your TrueNAS LAN IP.
  5. Save / Deploy.
  6. Wait for the container to start.
  7. Open:

Code:
http://<YOUR_TRUENAS_IP>:5000

You should see the emulator dashboard.



Expected startup logs

The logs should show something like:

Code:
TCP Server (ConnectGate) listening on 0.0.0.0:10000
Mode: NclMio (XOR)
STUN/raw UDP logger listening on 0.0.0.0:5730
STUN/raw UDP logger listening on 0.0.0.0:5739
STUN/raw UDP logger listening on 0.0.0.0:5740
Raw TCP/HTTP/TLS hit logger listening on 0.0.0.0:80



Windows connectivity tests

From the Windows PC running PES 2021:

Code:
Test-NetConnection <YOUR_TRUENAS_IP> -Port 5000
Test-NetConnection <YOUR_TRUENAS_IP> -Port 10000
Test-NetConnection <YOUR_TRUENAS_IP> -Port 8088

UDP quick test:

Code:
$udp = New-Object System.Net.Sockets.UdpClient
$bytes = [Text.Encoding]::ASCII.GetBytes("pes udp test")
$udp.Send($bytes, $bytes.Length, "<YOUR_TRUENAS_IP>", 5739)
$udp.Close()

Then check the dashboard logs.



PES DNS / hosts redirect

The PES client must be redirected to your emulator.

Depending on your setup, this can be done with:

  • Windows hosts file
  • local DNS override
  • router DNS override
  • Pi-hole / AdGuard DNS rewrite
  • custom DNS server

Example format:

Code:
<YOUR_TRUENAS_IP> pes21-x64-gate.cs.konami.net
<YOUR_TRUENAS_IP> pes21-x64-stun.cs.konami.net

The exact domains may need to be confirmed by packet capture or previous PES network research.



Testing workflow

Recommended workflow:

  1. Open dashboard:
    Code:
       http://<YOUR_TRUENAS_IP>:5000

  1. Click Clear Logs.

  1. Start PES 2021.

  1. Enter Online mode / Friendly Match Lobby attempt.

  1. Watch dashboard timeline.

  1. Expected current result:

Code:
   RX 0x2EE4
   TX 0x2EF4
   RX 0x2E04
   TX 0x2E04
   POST_AUTH_WAIT
   POST_AUTH_CLOSE

  1. Click Export Debug ZIP.

  1. Share the ZIP with other developers for analysis.

Before sharing, make sure no personal IPs are exposed.

Replace LAN/private IPs with:

Code:
<YOUR_TRUENAS_IP>
<YOUR_CLIENT_IP>



Version / Development History

v0.4

Fixed Docker startup problems.

Added:

  • PYTHONPATH fix
  • DB init fix
  • entrypoint improvements
  • Docker healthcheck
  • TrueNAS Custom App YAML

Purpose:

Make the project start reliably in Docker/TrueNAS.



v0.5

Added:

  • startup banner
  • dashboard URL in logs
  • improved dashboard
  • /health endpoint
  • expanded status API
  • TrueNAS YAML using latest

Purpose:

Make the container easier to run and monitor.



v0.7

Added:

  • live packet monitor
  • selected packet HEX viewer
  • /api/admin/packets
  • RX/TX counters
  • gateway hit counters
  • TCP events written into dashboard logs

Purpose:

Move from simple logging to live packet inspection.



v0.8

Added:

  • dashboard title/version
  • live refresh
  • packet monitor
  • clickable packets
  • HEX + ASCII inspector
  • protocol timeline
  • /api/admin/timeline
  • structured packet fields
  • better stats

Purpose:

Make captured traffic readable in real time.



v0.8.1

Added:

  • Export Debug ZIP
  • /api/admin/export.zip
  • per-packet .hex
  • packet JSON/TXT/CSV
  • timeline export
  • sessions export
  • stats export
  • knowledge base export

Purpose:

Make it easy to share packet captures for reverse engineering.



v0.9

Added:

  • Clear Logs
  • named debug exports
  • post-auth analysis
  • POST_AUTH_WAIT / POST_AUTH_RX / POST_AUTH_CLOSE
  • larger TCP/TLS/HTTP preview
  • UDP/STUN HEX logging

Purpose:

Find out what happens immediately after Auth.

Discovery:

The client closes after Auth and does not send a Lobby opcode.



v0.9.1

Added:

  • Auth Investigation panel
  • /api/admin/auth-report
  • Auth report JSON/TXT exports
  • per-session Auth reports
  • RX 0x2E04 vs TX 0x2E04 byte diff
  • parsed auth helper fields
  • AUTH_FIELDS logging

Purpose:

Understand why the client closes immediately after Auth.



v0.9.2

Added:

  • cleaner debug export
  • auth_offsets.json
  • auth_diff.txt
  • connection_state.json
  • packet_summary.md
  • full auth offset tables

Purpose:

Create better captures before Lobby-focused work.



v0.9.3

Added:

  • PES_AUTH_RESPONSE_MODE
  • PES_AUTH_RESPONSE_PAYLOAD_LEN
  • Auth modes:
    - baseline
    - mirror8
    - mirror16
    - mirror32
    - mirror_header
    - user_profile
  • AUTH_VARIANT logging
  • POST_AUTH_CLOSE now logs active Auth mode

Purpose:

Test whether missing token/session mirroring causes the post-auth close.



v0.9.4

Added:

  • Network Discovery Lab
  • /api/admin/network-discovery
  • network_discovery.json
  • network_discovery.txt
  • correlation window after Auth
  • DISCOVERY_TCP / DISCOVERY_UDP tags
  • HTTP host/path / TLS SNI extraction attempt
  • external endpoint hits after auth stat

Purpose:

Check whether the game opens another TCP/UDP/HTTP/TLS endpoint after Auth.

Result:

No external endpoint detected.



v0.9.5

Added:

  • default auth profile changed to full120
  • TX 0x2E04 total length changed to 120 bytes
  • added:
    - mirror64
    - mirror96
    - full120
  • success/status bytes preserved after mirroring
  • IP candidate preserved after mirroring
  • auth profile test plan export

Purpose:

Test whether the full 120-byte Auth Response is required.

Result:

Still closes after Auth.



v0.9.5.1

Hotfix.

Fixed:

  • /api/admin/export.zip HTTP 500
  • safe export writers
  • export_warnings.json

Purpose:

Make debug export reliable again.



v0.9.6

Added:

  • dashboard Auth Mode dropdown
  • GET/POST /api/admin/auth-mode
  • runtime Auth Mode switching
  • TCP server reads active mode from /tmp/pes_auth_response_mode.txt
  • no Docker rebuild needed for Auth profile tests

Purpose:

Make Auth profile testing fast.

Before this, changing Auth mode required YAML changes / redeploy.

After this, testing is:

Code:
Select Auth Mode
↓
Clear Logs
↓
Test PES
↓
Export ZIP



v0.9.7

Added:

  • pure auth profiles:
    - pure_mirror96
    - pure_full120
    - echo_payload120
  • reference prep exports
  • reference-comparison guidance

Purpose:

Test whether overwritten flags/IP fields caused the disconnect.

Result:

Still no Lobby packet captured.



Current conclusion

We have a working PES 2021 connection, EULA, and Auth pipeline.

The blocker is now narrow:

Code:
Auth Response accepted
↓
Client performs some validation
↓
Client closes before Lobby

The next real breakthrough will likely come from:

  1. Testing Football Life 26
  2. Capturing a real successful reference session
  3. Reverse engineering the remaining Auth/session fields
  4. Comparing original vs emulator Auth Response byte-by-byte



Request for help

If anyone has experience with PES 2021 networking, Konami's ConnectGate/NclMio protocol, Steam ticket validation, or has old packet captures from working PES 2021 online services, any help would be extremely valuable.

The project already has:

✅ working Docker deployment
✅ working dashboard
✅ working packet capture
✅ working EULA
✅ working Auth
✅ reproducible debug exports

The missing piece is the final validation step between Auth and Lobby.


Attachments

Last edited:
Small progress update:


We now have a working DNS redirect, ConnectGate handling, EULA flow and Auth flow.


The client successfully reaches the authentication stage and accepts our responses.


The current blocker is what happens immediately after authentication. The client closes the connection roughly 40 ms after receiving the auth response, before any Lobby, STUN, or P2P activity occurs.


We are now focusing on understanding the post-authentication session flow rather than the login process itself.


If anyone has old packet captures, documentation, protocol notes, or reverse engineering work related to PES 2021 online services, Team Play Lobby, ConnectGate, or post-authentication traffic, it would be extremely helpful.

Another development update on the PES 2021 Private Server project.

Following the previous breakthrough where we reached the EULA and authentication stages successfully, today's work focused on investigating what happens after authentication.

We now have visibility from both sides of the connection:

  • Server-side instrumentation (DNS, ConnectGate, EULA, Auth, session analysis)
  • Client-side instrumentation through a custom PES Client Inspector

This allowed us to monitor the game process, TCP/UDP sockets, DNS activity and executable analysis while attempting to connect online.

Key findings:

  • PES2021.exe maintains an active TCP connection to the emulated server.
  • The game opens several UDP sockets, confirming that network functionality is still present and active.
  • We identified an additional service endpoint: pesam.stun.service.konami.net, which was not part of our original target list.
  • A dedicated STUN emulation test was implemented and the endpoint was redirected to our infrastructure.

However, the most important result is that the client still disconnects immediately after the authentication exchange.

Even with additional endpoint emulation in place, we are not observing:

  • Lobby traffic
  • STUN negotiation
  • P2P initialization
  • Secondary connections after authentication

Current evidence suggests the client is failing a validation step immediately after authentication and disconnecting before reaching the networking stages associated with Lobby, STUN or gameplay.

We also completed the first successful scans of the PES2021 executable itself and have started identifying internal match-related strings and runtime behavior.

Next focus:

  • DLL/module analysis
  • UTF-16 and resource string scanning
  • Winsock/network API tracing
  • Session validation and ticket verification research

At this point the project is no longer blocked by DNS, ConnectGate, EULA or basic authentication. The primary unknown is now the validation process that occurs between a successful authentication response and the expected transition to Lobby or network services.

this sounds really interesting, have a question are you testing all this over the original version of the game? like bought from steam? not asking for forum rules, but because if its a cracked version maybe the cracked could have removed some useful methods used by the game to connect to the server not on proporse but just because he thought it was related to some validation of the game, and that could lead into the game not authenticating the session

You must log in or register to reply here.
Back
Top Bottom
